Capacity |
500GB(with Heatsink), 1TB(with Heatsink), 2TB(with Heatsink) |
---|







The reasons may be 1The ssd is wrongly inserted into the M.2SATA interface 2The ssd is not formatted and partitioned. lfthis is not the case, please contact us for processing

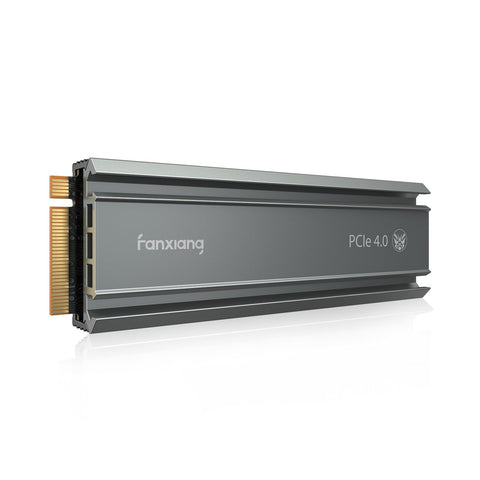

Fast speed means high temperature, which is a normalphenomenon. The dual structure S660 ssd with graphenesticker and heat sink can effectively cool down and ensure thestability of performance
Actual usable space may be less than the total storage capacitylisted due to decimal measurement used to represent usablecapacity ofthe SSD.Actual capacity calculation: Total storage x 0.93

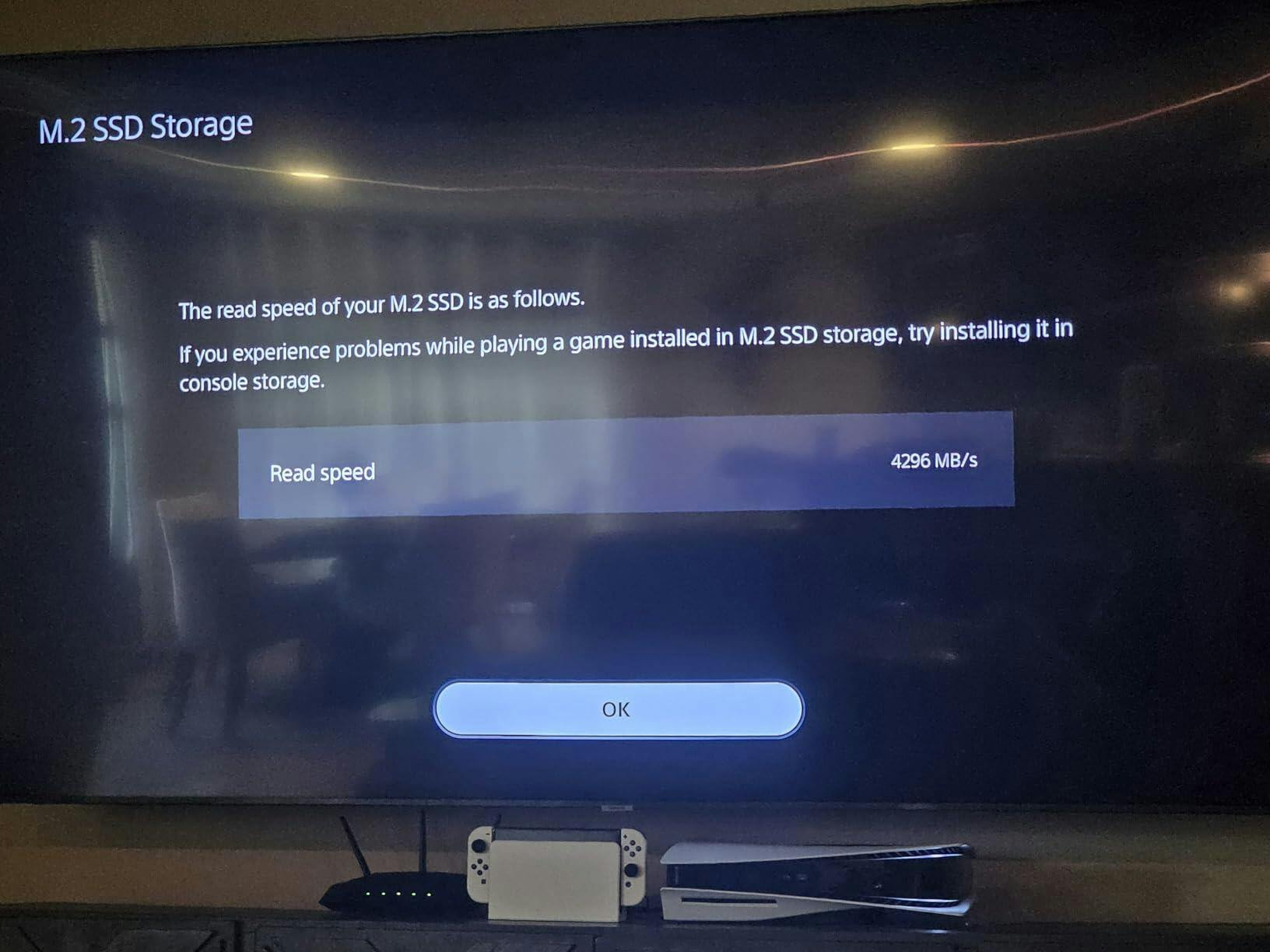

You can check the slot ofthe device and the motherboard. Ifvou insert a PCle 3.0 interface, the speed will decrease. Youneed to insert a PCle 4.0 interface. In addition, using an externalhard disk box will reduce the speed of the hard disk. lf it stilldoesn't work, please contact us
1*ssd, 1*heat sink, 4*graphene sticker, 1*screw, 1 screwdriver,1*instruction manual
S660 has a five-year warranty period, and we have localoverseas warehouses, which can return and exchange goodsin time. If you have any questions about the product, pleasefeel free to contact us
Firstly, please choose 1 thick and 1 thin from the 4 thermal pads that come with the product.
1. Tear off the plastic film on one of the thermal pads, and place it on the heat sink base;
2. Place the SSD on the thermal pad (note that the chip needs to be placed upwards);
3. Adjust the SSD to a proper position so that the screw holes and the M.2 interface leak out;
4. Tear off the plastic film of the other thermal pad, and stick it on the bottom of the heat sink;
5. Insert one side of the heat sink into the slot of the base. After adjusting the position, press the other side of the heat sink firmly, and when you hear a "click", it means that the heat sink is installed in place;
6. Fix the SSD with the heat sink installed with screws or the buckles that come with the motherboard.
