Next-level SSD
performance
Next-level SSD
performance

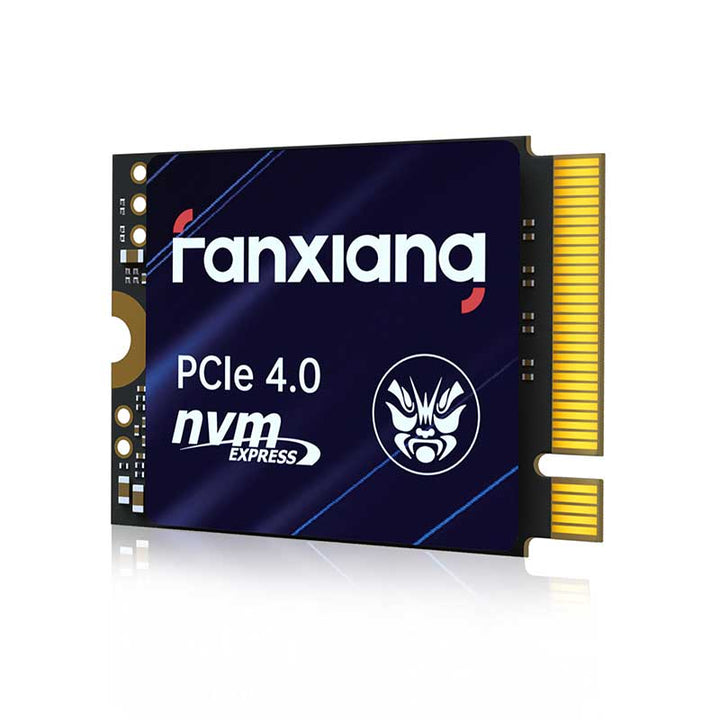

Unleash the power of the Fanxiang S700 PCIe® 4.0 NVMe™ SSD for next-level computing. S700 delivers 2.1x the data transfer rate of PCIe® 3.0, while maintaining compatibility with PCIe® 3.0.
Ultimate gaming experience
Ultimate gaming experience
Keep your SSD running at its peak with read 4500MB/s, which drives continuous and consistent high performance. SSD in active mode with no latency, so you can instantly jump back into large intensive work files or graphics-heavy games.
Graphene Heat Spreader
Heatsink with thermal control
Graphene Heat Spreader, the S700 ensures efficient cooling and consistent performance even under intense workloads. This cutting-edge thermal solution helps to maintain optimum temperatures, safeguarding your data and prolonging the SSD's lifespan.
Maximize built
5-year warranty
Maximize built
5-year warranty
Specs
Application
Client PCs, Game Consoles, Laptop, PS
Capacity
500GB/1TB
Interface
PCIE 4.0, M.2 2230
Dimension (WxHxD)
30mm(L)*22mm(W)*2.8mm(H)
Random Write
Write:4600MB/s（Top Speed）
Random Read
Read:5000MB/s
Weight
≈4.8g
Controller
IG5220
NAND Flash
YMTC TLC 3D NAND
Compatibility
Windows® 7,8,10,11;MAC OS;LINUX
Operating Temperature
0°~70°C
Storage Temperature
-40°C~85°C
Power consumption
Max 5W
Limited Warranty
5-Year Limited Warranty
Customer Reviews
Based on 9 reviews
56%
(5)
44%
(4)
0%
(0)
0%
(0)
0%
(0)
j
Rpido y fcil de instalar
d
Does the job, got this and a case to put it in, I teach cyber security and need to move large files around to various machines, this does the job and it does it well.
M
Working great in my steam deck!
R
This M2 drive is not bad if you want to upgrade to m2 sata. That being said, I will say is to make sure you motherboard supports m2 sata and newer motherboards do not work with this. For 250 gb, it is a relatively cheap price so you can upgrade without breaking the bank. I will say about this is that it does give a speed up boost over even a solid state drive of this price. If you are using this instead of a disk drive, you will definitely see the difference. It performs pretty well but not as well as higher name brand SSD. I honestly cannot really tell much difference visually but the speed tests showed it did not perform as fast as other drives. I will say it works for a good boot up drive and was able to boot up in a short amount of time. Due to the smaller space, it does not have much storage space for a ton of stuff (considering window sizes nowadays) but it works for running my operating system and a few applications. It is a good drive to have if you are planning to replace a a dying drive. I would say for building new computers but many newers PC do not support m2 sata drives in their slot. Regardless, it has been pretty reliable so far. This drive is still pretty fast. Because this is for an older PC, I actually just opted to only use this for my operating system and some other programs. I store my game on another drive. Unlike many M2 sata drives, this device does come with the screw to screw it down into a motherboard. The temperature on this thing can get pretty warm on full use but nothing that is dangerous level. You could attach a heat sink to this if you want but it is not required. Also make sure you have proper air flow throughout your computer. I would say if you planning to have this device in an enclosure however that you make sure a heat sink on it to distribute the heat evenly and keep the drive cool. This device is pretty much plug and use although you will need to initialize and partition the drive. If you are cloning the drive, make sure you change the default on your bios to read the m2 drive once the cloning is complete. The boot up speed can be between eight to ten seconds to boot up but it can vary. You can easily access file in a quicker speed and boot up (depending on if you install programs) is pretty quick. I store a few games on this drive and it is very quick speeds. It is pretty much instant boot up rather than that slight lag you get when loading from a disk drive. I did a speed test on the drive and it did pretty well. It did not out perform other m2 drives but it does the job. It is definitely something I can use on my mini itx build. Overall I think this is a decent M2 solid state drive. The performance difference between this and other M2 drives is too different but it does under perform compared to many name brands. It does have a smaller memory so it may really only hold the OS and some programs.
A
Bought it for my steamdeck. nice capacity for the money. One complain I have is it has a heat shield kind of material sticking on the surface of the memory, but it is made of paper/cardboard material. I can not tell if it is a label or q heat shield. I wish it came with instruction to tell us if we should leave it on or take it off. Not intuitive at all.
